Union Special
BCE211UA26-1M
Automatic Bag Closing Machine
Protection Class III
2 Thread, 24v
-
About Machine

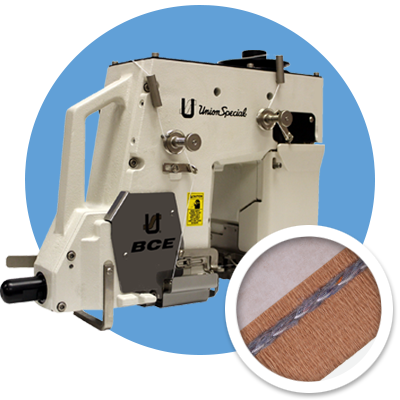

Union Special BCE211UA26-1M
Two Thread Double Locked Chainstitch Automatic Bag Closing Machine
Vertical acting presser foot system for closing filled bags with or without crepe paper tape.
Guides for filler cord and sealing punctures made by needle. For use with bag feed-in devices.
Independently adjustable chaining. Adjustable presser foot pressure for optimized bag feeding.
Low thread tensions to reduce risk of thread breakage. Low noise and vibration.
Without tape folder.
Union Special on YouTube
-
Specification
Machine Specifications
Series BCE200
Threads 2 Thread
Handling Stationary
Power 24v
Start/Stop Automatically – Feeler Controlled Proximity Switch
Protection Class III
Weight 46kg
Bag Materials Paper, PE-Material, PP Laminated Woven Fabric
Capacity on Paper 32 Plies
Closure Type Fold Over Closure, Plain Closure
Bag Feed-In Automatic Feed
Stitch Range 6.5 – 11.5mm
Foot Lift 12.70mm
Thread Chain & Tape Cutter Electro-Pneumatic Guillotine (Double Acting Air Cylinder)
Feed Type Bottom Feed
Lubrication Pressure
