Union Special
BCE211KA12-1M

Categories: , .


Automatic Bag Closing Machine
Self-Adhesive Crepe Tape
2 Thread, 24v

brochure_button


union_special_spare_parts
union_special_manuals
  • About Machine

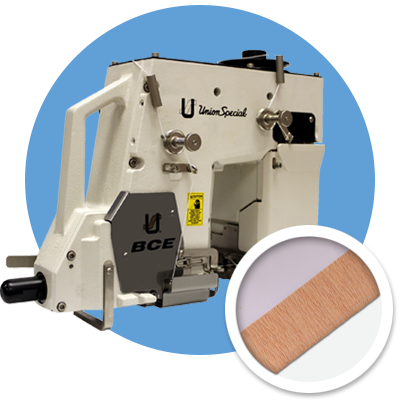

    Union Special BCE211KA12-1M

    Automatic Bag Closing Machine

    Two thread, double locked chainstitch machine for closing filled bags and adding self adhesive crepe tape over the sewn closure.

    With tape folder.

    Tape width 50 or 60 mm. Only used in connection with combined bag feed-in and trimming devices.

    Adjustable, vertical presser foot pressure for optimized bag feeding.

    Low noise and vibration.

    Union Special on YouTube

  • Specification

    Machine Specifications

    Series

    BCE200

    Threads

    2 Thread

    Handling

    Stationary

    Power

    24v

    Start/Stop

    Automatically – Feeler Controlled Proximity Switch

    Protection

    Class III

    Weight

    46kg

    Bag Materials

    Paper, PE-Material, PP Laminated Woven Fabric

    Capacity on Paper

    24 Plies

    Closure Type

    Self-Adhesive Crepe Tape Closure

    Bag Feed-In

    Automatic Feed

    Stitch Range

    6.5 – 10mm

    Foot Lift

    7mm

    Thread Chain & Tape Cutter

    Electro-Pneumatic Jump Out Knife

    Feed Type

    Bottom Feed

    Lubrication

    Pressure
