Union Special
80700C4



Bulk Bag Making Machine
Heavy Duty
1 Needle, 2 Thread

brochure_button


union_special_spare_parts
union_special_manuals
  • About Machine

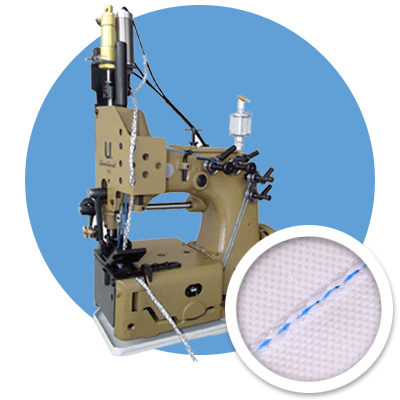

    Union Special 80700C4

    Heavy Duty Bag Making Machine

    Single needle double locked stitch sewing machine.

    Top and bottom feed for inserting top covers, attaching filling and discharging tubes on container bags.

    Easy crossing of side seams and belts.

    Upper feed drive in housing, therefore maximum capacity under the arm.

    Electro-pneumatically operated presser foot and upper feed dog lifter.

    Pneumatic presser foot spring.

    Guides for filler cord from the top and / or below for sealing the needle punctures.

    Without thread chain cutter.

    Union Special on YouTube

  • Specification

    Machine Specifications

    Series

    80700

    Needles

    1

    Threads

    2 Thread

    Materials

    Geotextile Tubes, Heavy Woven Polypropylene, Synthetic Turf

    Stitch Range

    6.5 – 11mm

    Foot Lift

    17mm

    Max Speed

    1400 RPM

    Lubrication

    Manual
