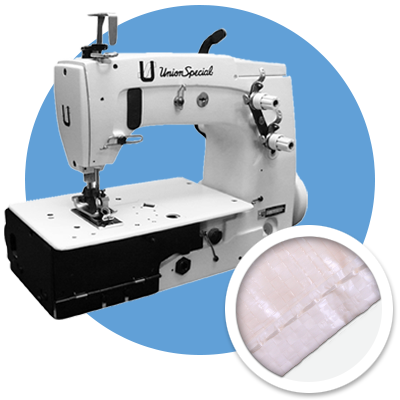

Union Special 56100RBTA
Small Bag Making Machine
Single needle single thread chainstitch sewing machine for use in automated systems
For seaming heavy weight as well as coated bags and simultaneously attaching a binding tape and Easy-Open tape (10 mm) from the top. Top and bottom feed.
Presser foot with guide for filler cord and guide for “Easy-Open” tape from the top. Without binding tape folder.
With needle bearing, advanced filtered oil return pump.
Sewing only in connection with tape resp. filler cord, end-chaining not possible.
Union Special on YouTube
-
Specification
Machine Specifications
Series 56100
Needles 1
Threads 1 Thread
Material Weight Medium to Heavy
Stitch Range 3.6 – 8.5mm
Foot Lift 6mm
Max Speed 4300 RPM
