Union Special
2200F

Categories: , .


Geotextile Sewing Machine
2 Thread, 42v
Portable


union_special_spare_parts
union_special_manuals
  • About Machine

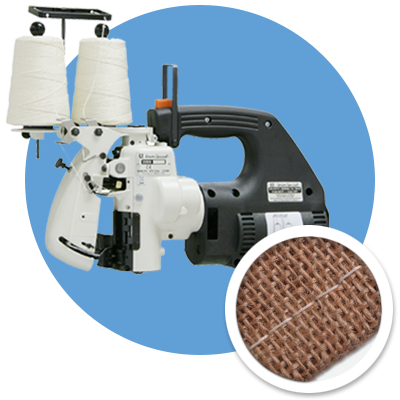

    Union Special 2200F

    Portable Two Thread Chain-Stitch Sewing Machine

    For sewing geotextile fabrics.

    Direct drive by fan-cooled electric motor.

    Extra-low voltage, 42v.

    Suitable for sewing under wet conditions.

    Reinforced, break resistant polyamide handle and motor housing.

    Sealed and dust proof.

    Permanently lubricated motor bearings.

    5m Power Cable.

    Union Special on YouTube

  • Specification

    Machine Specifications

    Series

    2200

    Threads

    2 Thread

    Handling

    Portable, Stationary, Suspended

    Power

    42v

    Start/Stop

    Hand Switch

    Protection

    Class III

    Weight

    5kg

    Closure Type

    Plain Closure

    Stitch Range

    3 – 9mm

    Foot Lift

    9mm

    Thread Chain & Tape Cutter

    Continuously Driven Nibbler Knife

    Feed Type

    Top and Bottom Feed

    Lubrication

    Manual
